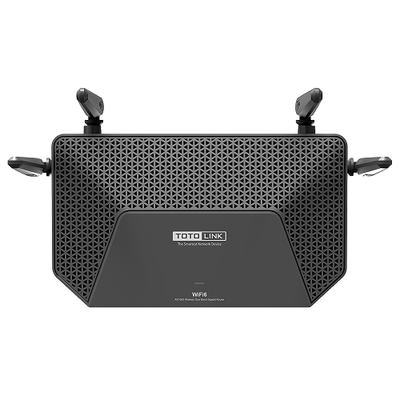

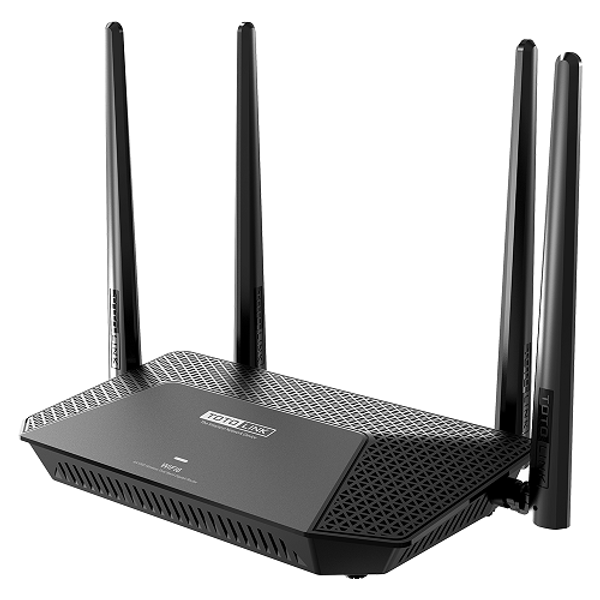

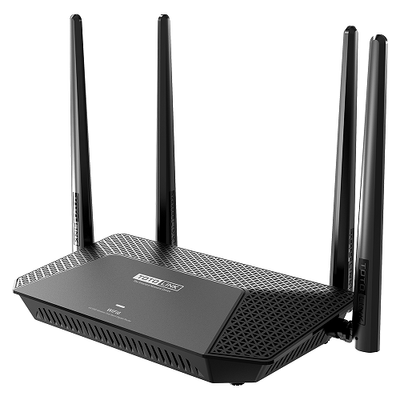

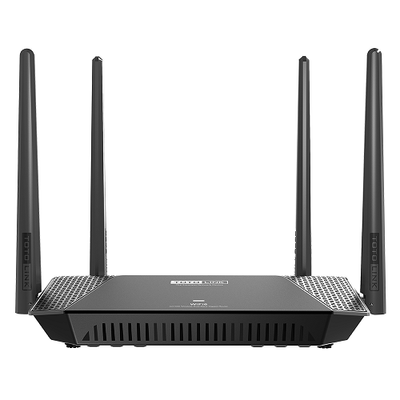

TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router

Interface- 4 * 10/100/1000Mbps LAN Ports- 1 * 10/100/1000Mbps WAN PortPower Supply- 12V DC/1AButton- 1 * RST/WPS ButtonAntenna- 2 * 2.4GHz fixed antennas(5dBi)- 2 * 5GHz fixed antennas(5dBi)LED Indicators- 1 *SYS, 1 *WAN, 4 *LANDimensions (L x W x H)- 206 x 121 x 41mmWirelessStandards- IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,- IEEE 802.11g, IEEE 802.11b, IEEE 802.11aRF Frequency- 2.4GHz/5GHzData Rate- 2.4GHz: Up to 300Mbps- 5GHz: Up to 1201MbpsEIRP- 2.4GHz - 5GHz Wireless Security- 64/128-bit WEP, WPA, WPA2 and WPA-Mixed- WPA3Reception Sensitivity- 2.4G:11b 11M：-81dBm@8% PER11g 54M：-68dBm@10% PER11n HT20 MCS7：-65dBm@10% PERHT40 MCS7：-62dBm@10% PER- 5G:11a 54M：-68dBm@10% PER11n HT20 MCS7：-65dBm@10% PERHT40 MCS7：-62dBm@10% PER11ac VHT80 MCS9：-51dBm@10% PER11ax HE80 MCS11：-46dBm@10% PERSoftwareOperation Mode- Gateway Mode- Repeater Mode- AP Mode- WISP ModeStatus- WAN- Wireless- LAN- System InformationNetwork- WAN Setting- LAN Setting- IPTV Setting- DHCP&ARP Tables- Static Route- Routing TableMesh setting- Optional master device and slave deviceWAN Type- Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TPIPv6 Protocol- DHCP/Static IP/PPPoEWireless- Basic Settings- Guest network- Advanced Settings- Access Control- Wireless ScheduleQoS- Up/Down speed control on WAN,- Bandwidth control based on IP addressSecurity- IP/Port Filtering- MAC Filtering- URL FilteringNAT- Virtual Server(Port Forwarding) - DMZ- VPN PassthroughSystem- Upgrade Firmware- Save/Reload Settings- Time Zone Settings- DDNS - Denial-of-Service- TR-069 Config- Password Settings- Reboot Schedule- System Log- Statistics - Run Command- LogoutOthersPackage Contents- X2000R Wireless Router * 1- Power Adapter * 1- Ethernet Cable * 1- Quick Installation Guide * 1Environment- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)- Operating Humidity: 10%~90% non-condensing- Storage Humidity: 5%~90% non-condensing

•
•
•
•
•
•
•
•
•
•
•
•
•
•

•
•
•
•
•
•
•
•
•
•
•
•
•
•

Details:

• Warranty
  1-Year Official Warranty

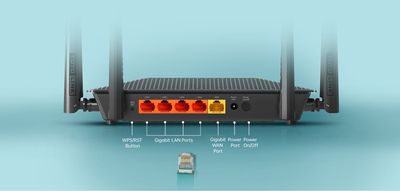

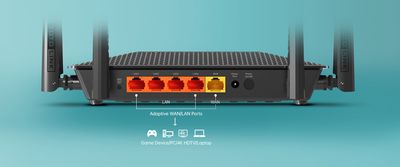

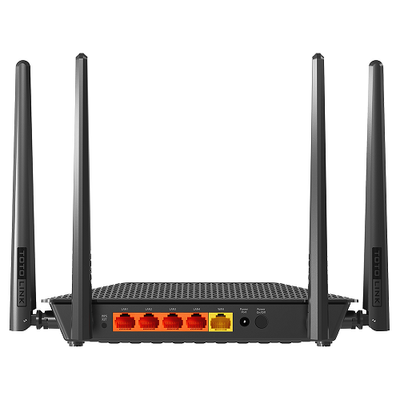

• Interface

- 4 * 10/100/1000Mbps LAN Ports

- 1 * 10/100/1000Mbps WAN Port

Power Supply

- 12V DC/1A

Button
- 1 * RST/WPS Button

Antenna

- 2 * 2.4GHz fixed antennas(5dBi)

- 2 * 5GHz fixed antennas(5dBi)

LED Indicators
- 1 *SYS, 1 *WAN, 4 *LAN

Dimensions (L x W x H)

- 206 x 121 x 41mm


Wireless

Standards

- IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,

- IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

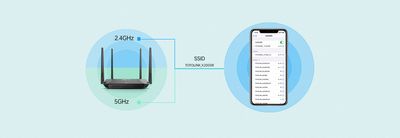

RF Frequency

- 2.4GHz/5GHz

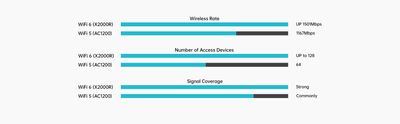

Data Rate
- 2.4GHz: Up to 300Mbps

- 5GHz: Up to 1201Mbps

EIRP
- 2.4GHz < 20dBm

- 5GHz < 20dBm

Wireless Security


- 64/128-bit WEP, WPA, WPA2 and WPA-Mixed

- WPA3

Reception Sensitivity



- 2.4G:

11b 11M：-81dBm@8% PER

11g 54M：-68dBm@10% PER

11n HT20 MCS7：-65dBm@10% PER

HT40 MCS7：-62dBm@10% PER



- 5G:

11a 54M：-68dBm@10% PER

11n HT20 MCS7：-65dBm@10% PER

HT40 MCS7：-62dBm@10% PER

11ac VHT80 MCS9：-51dBm@10% PER

11ax HE80 MCS11：-46dBm@10% PER


Software

Operation Mode

- Gateway Mode

- Repeater Mode

- AP Mode

- WISP Mode

Status

- WAN

- Wireless

- LAN

- System Information

Network

- WAN Setting

- LAN Setting

- IPTV Setting

- DHCP&ARP Tables

- Static Route

- Routing Table

Mesh setting

- Optional master device and slave device

WAN Type

- Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP

IPv6 Protocol


- DHCP/Static IP/PPPoE

Wireless



- Basic Settings

- Guest network

- Advanced Settings

- Access Control

- Wireless Schedule

QoS

- Up/Down speed control on WAN,

- Bandwidth control based on IP address

Security

- IP/Port Filtering

- MAC Filtering

- URL Filtering

NAT



- Virtual Server(Port Forwarding) - DMZ

- VPN Passthrough

System

- Upgrade Firmware

- Save/Reload Settings

- Time Zone Settings

- DDNS - Denial-of-Service

- TR-069 Config

- Password Settings

- Reboot Schedule

- System Log

- Statistics - Run Command

- Logout


Others

Package Contents

- X2000R Wireless Router * 1

- Power Adapter * 1

- Ethernet Cable * 1

- Quick Installation Guide * 1

Environment

- Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 10%~90% non-condensing

- Storage Humidity: 5%~90% non-condensing
